Nickel Alloy 825, commercially known as Incoloy 825, represents one of the most versatile and reliable corrosion-resistant materials in modern industrial applications. This high-performance nickel-iron-chromium-molybdenum-copper alloy has become indispensable in industries where extreme corrosion resistance, mechanical strength, and durability are paramount. From chemical processing plants to offshore oil platforms, Incoloy 825 continues to prove its worth in some of the world's most demanding environments.
Understanding Nickel Alloy 825 Composition and Structure
Chemical Composition

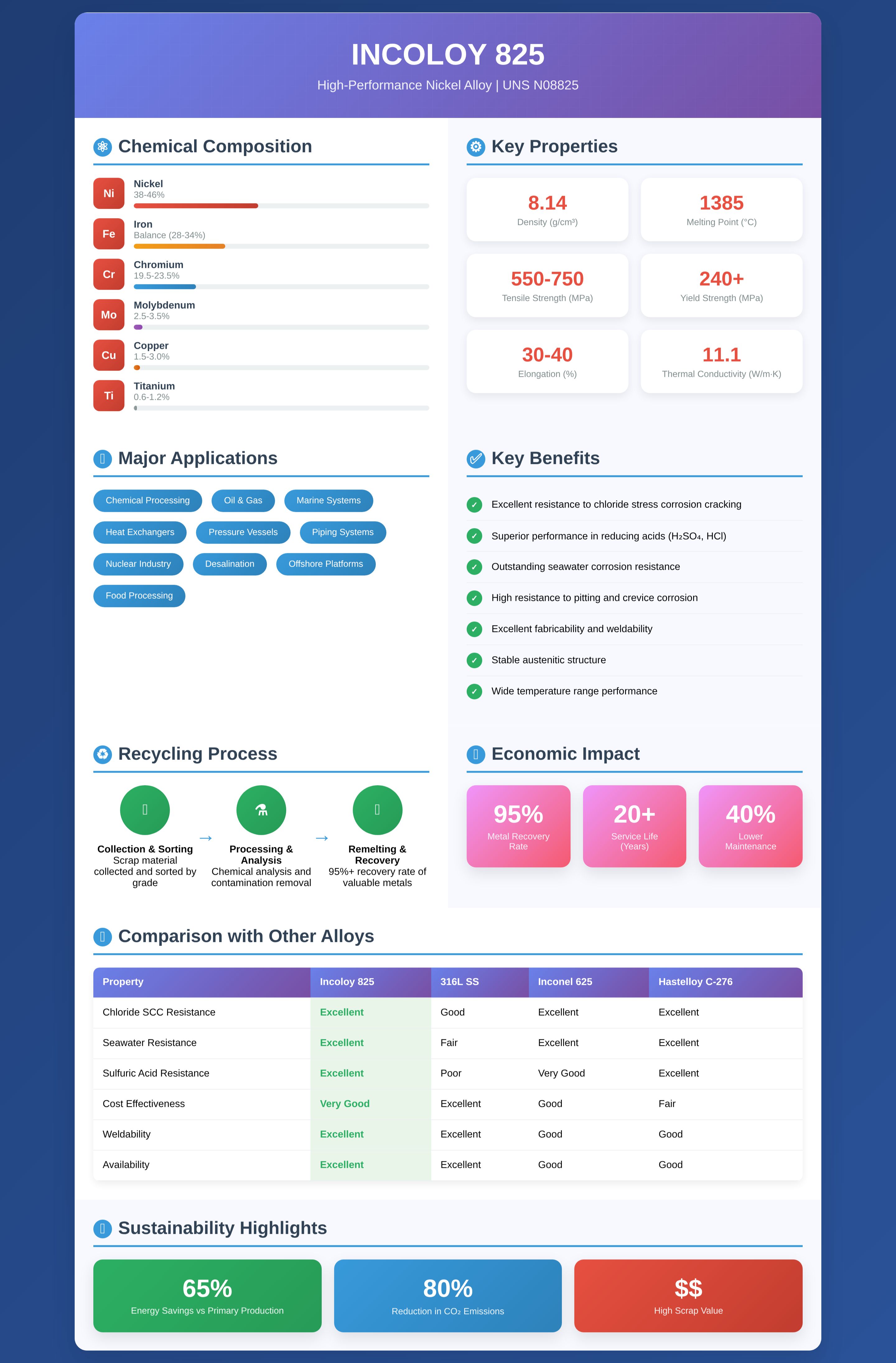

Nickel Alloy 825 is characterized by its carefully balanced chemical composition, which gives it exceptional properties:
- Nickel (Ni): 38-46% - The high nickel content forms the foundation of the alloy's corrosion resistance and provides excellent resistance to chloride ion stress corrosion cracking
- Iron (Fe): Balance (typically 28-34%) - Provides structural stability and cost-effectiveness
- Chromium (Cr): 19.5-23.5% - Essential for oxidation resistance and general corrosion protection
- Molybdenum (Mo): 2.5-3.5% - Enhances resistance to reducing acids and prevents pitting corrosion
- Copper (Cu): 1.5-3.0% - Improves resistance to reducing acids, particularly sulfuric acid
- Titanium (Ti): 0.6-1.2% - Acts as a stabilizing element and improves resistance to intergranular corrosion
- Carbon (C): Maximum 0.05% - Kept low to prevent carbide precipitation
- Aluminum (Al): Maximum 0.2% - Minor addition for deoxidation
This unique composition creates a stable austenitic structure that maintains its integrity across a wide range of temperatures and corrosive environments.
Metallurgical Structure
The austenitic structure of Incoloy 825 is inherently stable, meaning it doesn't undergo phase transformations that could compromise its properties during service. The alloy's microstructure consists of a face-centered cubic crystal lattice that provides excellent toughness and ductility while maintaining high strength characteristics.
Exceptional Properties of Incoloy 825
Corrosion Resistance
The most outstanding characteristic of Nickel Alloy 825 is its exceptional corrosion resistance. The alloy demonstrates superior performance in numerous corrosive environments:
Acid Resistance: Incoloy 825 shows excellent resistance to both reducing and oxidizing acids, including sulfuric acid, phosphoric acid, and hydrochloric acid across various concentrations and temperatures. The combination of nickel, chromium, and molybdenum creates a protective passive layer that self-repairs when damaged.
Chloride Stress Corrosion Cracking (SCC) Resistance: The high nickel content provides outstanding resistance to chloride-induced stress corrosion cracking, making it ideal for marine environments and chemical processing applications involving chlorides.
Pitting and Crevice Corrosion Resistance: The molybdenum content significantly improves the alloy's resistance to localized corrosion forms, including pitting and crevice corrosion, particularly in chloride-containing environments.
Seawater Corrosion Resistance: Incoloy 825 performs exceptionally well in seawater applications, resisting both general corrosion and localized attack mechanisms.
Mechanical Properties
Incoloy 825 maintains excellent mechanical properties across a wide temperature range:
Tensile Strength: The alloy typically exhibits tensile strengths ranging from 550-750 MPa (80-109 ksi) in the annealed condition, providing adequate strength for structural applications.
Yield Strength: Minimum yield strength of approximately 240 MPa (35 ksi) ensures sufficient structural integrity under load.
Elongation: High elongation values of 30-40% demonstrate excellent ductility, allowing for complex forming operations and good impact resistance.
Impact Resistance: The alloy maintains good impact strength at room temperature and retains its toughness even at cryogenic temperatures, making it suitable for low-temperature applications.
Fatigue Resistance: Excellent fatigue properties ensure long-term reliability in cyclic loading conditions.
Physical Properties
Density: Approximately 8.14 g/cm³ (0.294 lb/in³) Melting Point: 1370-1400°C (2500-2550°F) Thermal Conductivity: 11.1 W/m·K at 20°C Thermal Expansion: 14.2 × 10⁻⁶/°C (20-100°C) Electrical Resistivity: 1.02 μΩ·m at 20°CMagnetic Properties: Non-magnetic in the annealed condition
Industrial Applications and Uses
Chemical Processing Industry
The chemical processing industry represents the largest application sector for Incoloy 825. The alloy's exceptional resistance to various acids and chemical environments makes it ideal for:
Heat Exchangers: Used in applications involving sulfuric acid, phosphoric acid, and other corrosive media where both heat transfer efficiency and corrosion resistance are critical.
Reaction Vessels: Employed in reactors handling aggressive chemical processes, particularly those involving acids, chlorides, and high-temperature conditions.
Piping Systems: Utilized in chemical plant piping systems where long-term reliability and resistance to both general and localized corrosion are essential.
Storage Tanks: Applied in storage facilities for corrosive chemicals where contamination must be prevented and structural integrity maintained over decades.
Oil and Gas Industry
The oil and gas sector extensively utilizes Incoloy 825 in various applications:
Downhole Equipment: Used in oil and gas wells where exposure to hydrogen sulfide, carbon dioxide, and chlorides creates extremely corrosive conditions.
Offshore Platforms: Applied in seawater-exposed components where marine corrosion resistance is critical.
Refinery Equipment: Employed in refining processes involving sulfur compounds and acidic environments.
Pipeline Systems: Utilized in gathering and transmission lines where sour gas conditions exist.
Marine and Naval Applications
The marine industry leverages Incoloy 825's seawater corrosion resistance:
Seawater Systems: Used in seawater cooling systems, ballast systems, and fire suppression systems on vessels and offshore structures.
Desalination Plants: Applied in critical components of seawater desalination facilities where chloride resistance is paramount.
Offshore Structures: Employed in splash zone applications where alternating wet/dry conditions create severe corrosion challenges.
Nuclear Industry
The nuclear sector utilizes Incoloy 825 in specific applications:
Steam Generator Components: Used in secondary side components where resistance to steam and potential contaminants is required.
Waste Processing Systems: Applied in radioactive waste processing equipment where corrosion resistance and structural integrity are critical.
Food and Pharmaceutical Processing
In applications requiring high purity and corrosion resistance:
Processing Equipment: Used in food and pharmaceutical processing where product contamination must be prevented.
Storage and Transport Systems: Applied in systems handling corrosive food acids and pharmaceutical chemicals.
Manufacturing and Fabrication
Available Product Forms
Incoloy 825 is available in numerous product forms to meet diverse application requirements:
Plates and Sheets: Available in various thicknesses for pressure vessel and structural applications Bars and Rods: Supplied in multiple diameters for machining into custom components Pipes and Tubes: Available as seamless or welded products for piping systems and heat exchangers Forgings: Custom forged components for critical applications requiring enhanced mechanical properties Wire and Strip: Specialized forms for specific manufacturing processes Castings: Investment cast components for complex geometries
Fabrication Characteristics
Machinability: Incoloy 825 exhibits moderate machinability. The alloy work-hardens during machining, requiring sharp tools, proper cutting speeds, and adequate cooling. Carbide or ceramic tooling is recommended for optimal results.
Formability: The alloy demonstrates excellent cold formability due to its austenitic structure. Complex forming operations can be performed without intermediate annealing, though severe forming may require stress relief.
Weldability: Incoloy 825 possesses excellent weldability using conventional welding processes including GTAW (TIG), GMAW (MIG), SMAW (stick), and SAW. No preheating is typically required, and the alloy doesn't require post-weld heat treatment for corrosion resistance.
Heat Treatment: The standard heat treatment is solution annealing at 980-1010°C (1800-1850°F) followed by rapid cooling. This treatment ensures optimal corrosion resistance and mechanical properties.
Quality Control and Standards
Incoloy 825 is manufactured to various international standards:
ASTM Standards: B163, B423, B424, B425, B564, B751, B775 ASME Standards: SA-163, SA-423, SA-424, SA-425UNS Designation: N08825 DIN/EN Standards: 2.4858
Quality control measures include chemical analysis, mechanical testing, non-destructive examination, and corrosion testing to ensure material compliance with specifications.
Comparison with Other Nickel Alloys
Incoloy 825 vs. Incoloy 800/800H/800HT
While both alloys share similar base compositions, Incoloy 825 contains molybdenum and copper additions that significantly enhance its corrosion resistance, particularly in reducing acid environments. Incoloy 800 series alloys excel in high-temperature oxidation resistance but lack the aqueous corrosion resistance of 825.
Incoloy 825 vs. Inconel 625
Inconel 625 contains higher nickel and molybdenum content, providing superior corrosion resistance in the most severe environments. However, Incoloy 825 offers better cost-effectiveness for moderately corrosive applications while maintaining excellent performance.
Incoloy 825 vs. Hastelloy C-276
Hastelloy C-276 provides superior corrosion resistance in extremely aggressive environments but at significantly higher cost. Incoloy 825 represents an optimal balance of performance and economy for many industrial applications.
Incoloy 825 vs. Stainless Steel 316L
While 316L stainless steel offers good corrosion resistance in many environments, Incoloy 825 demonstrates superior performance in acidic conditions, higher temperature applications, and chloride-containing environments.
Economic Considerations
Cost Factors
The cost of Incoloy 825 is influenced by several factors:
Raw Material Costs: Nickel and molybdenum price fluctuations significantly impact alloy pricing Manufacturing Complexity: The sophisticated metallurgy and quality control requirements affect production costs Market Demand: Industrial demand cycles influence pricing dynamics Availability: Supply chain considerations and production capacity affect market pricing
Life Cycle Cost Benefits
While Incoloy 825 commands a premium price compared to standard stainless steels, its superior corrosion resistance often results in lower life cycle costs through:
Extended Service Life: Longer component lifespan reduces replacement frequency Reduced Maintenance: Lower maintenance requirements decrease operational costs Improved Reliability: Reduced downtime and failure rates enhance operational efficiency Lower Total Cost of Ownership: Despite higher initial costs, total ownership costs are often lower
Environmental Impact and Sustainability
Recycling and Scrap Recovery
The recycling of Nickel Alloy 825 plays a crucial role in sustainable materials management. The high value of nickel, chromium, and molybdenum makes recycling economically attractive while providing significant environmental benefits.
Recycling Process: Scrap Incoloy 825 undergoes sophisticated recycling processes that separate and recover the valuable alloying elements. Modern recycling facilities can achieve recovery rates exceeding 95% of the contained metals.
Economic Benefits of Recycling: The high value of the constituent metals makes Incoloy 825 scrap valuable. Current market prices for clean Incoloy 825 scrap reflect the content of nickel, chromium, and molybdenum, making recycling financially attractive.
Environmental Benefits: Recycling Incoloy 825 provides substantial environmental advantages:
- Reduces the need for primary metal extraction and processing
- Decreases energy consumption compared to primary production
- Minimizes mining-related environmental impacts
- Reduces greenhouse gas emissions associated with metal production
- Diverts valuable materials from landfills
Scrap Categories and Quality
Prime Scrap: Clean, uncontaminated Incoloy 825 with known composition commands the highest prices Secondary Scrap: Mixed nickel alloy scrap requiring separation and analysis Contaminated Scrap: Material requiring cleaning and processing before recycling
Quality Factors Affecting Scrap Value:
- Cleanliness and contamination levels
- Size and form of scrap material
- Composition verification and certification
- Quantity and consistency of supply
Sustainable Manufacturing Practices
Modern Incoloy 825 production incorporates sustainable practices:
Energy Efficiency: Advanced melting and processing technologies reduce energy consumption Waste Minimization: Improved manufacturing processes reduce waste generation Recycled Content: Many producers incorporate recycled materials into new production Environmental Management: Comprehensive environmental management systems minimize production impacts
Quality Assurance and Testing
Material Testing Requirements
Comprehensive testing ensures Incoloy 825 meets specification requirements:
Chemical Analysis: Verification of elemental composition using advanced spectroscopic methods Mechanical Testing: Tensile, yield, elongation, and hardness testing to verify mechanical properties Corrosion Testing: Specialized tests to verify corrosion resistance in specific environments Non-Destructive Testing: Ultrasonic, radiographic, and penetrant testing to detect internal defects Microstructural Analysis: Metallographic examination to verify proper heat treatment and structure
Certification and Traceability
Mill Test Certificates: Comprehensive documentation of chemical composition and mechanical properties Material Traceability: Complete documentation from raw materials through final processing Third-Party Testing: Independent verification of critical properties when required Compliance Documentation: Certification of compliance with applicable standards and specifications
Future Trends and Developments
Emerging Applications
New applications for Incoloy 825 continue to emerge:
Renewable Energy: Applications in geothermal, solar thermal, and biomass energy systems Environmental Technology: Use in pollution control and waste treatment systems Advanced Manufacturing: Applications in additive manufacturing and advanced processing technologies.
Technological Advancements
Improved Processing: Advanced melting and processing technologies enhance material properties Enhanced Testing: Sophisticated testing methods provide better material characterization Digital Integration: Industry 4.0 technologies improve manufacturing control and quality assurance
Market Outlook
The market for Incoloy 825 continues to grow driven by:
Industrial Growth: Expanding chemical processing and oil and gas industries Infrastructure Investment: Growing investment in industrial infrastructure Environmental Regulations: Stricter environmental requirements driving demand for corrosion-resistant materials Technological Advancement: New applications in emerging technologies
Conclusion
Nickel Alloy 825 (Incoloy 825) stands as a testament to the sophisticated metallurgy that enables modern industrial civilization. Its unique combination of exceptional corrosion resistance, mechanical strength, and fabrication flexibility makes it indispensable in applications where failure is not an option. From the depths of oil wells to the harsh environment of chemical processing plants, Incoloy 825 continues to provide reliable service in some of the world's most demanding applications.
The economic considerations surrounding this premium alloy often favor its selection when life cycle costs are properly evaluated. While the initial material cost may be higher than alternatives, the extended service life, reduced maintenance requirements, and improved reliability often result in lower total ownership costs.
The sustainability aspects of Incoloy 825, particularly its recyclability and the high value of recycled scrap, align with modern environmental consciousness and circular economy principles. As industries increasingly focus on sustainable practices, the ability to recycle and reuse these valuable materials becomes increasingly important.
Looking forward, the demand for high-performance materials like Incoloy 825 is expected to grow as industries face increasingly challenging environments and stricter performance requirements. Continued technological advancement in both manufacturing and application development will likely expand the range of applications where this versatile alloy provides optimal solutions.
For engineers and designers facing corrosion challenges in demanding applications, Incoloy 825 represents a proven solution with a long history of reliable performance. Its established track record, combined with comprehensive industry standards and widespread availability, makes it a practical choice for critical applications where performance cannot be compromised.
The investment in Incoloy 825 is an investment in long-term performance, reliability, and operational efficiency. As industrial processes become more demanding and environmental considerations more important, the value proposition of this exceptional nickel alloy becomes increasingly compelling.
